Abrasion and heat are the leading causes of wire harness failure in the field. Wire loom is the protective conduit or sleeving applied over a wire bundle, shielding conductors from both while also blocking moisture ingress. Choosing the wrong type raises maintenance costs and accelerates harness degradation. Specifying the correct loom on your drawing eliminates both risks before manufacturing begins.

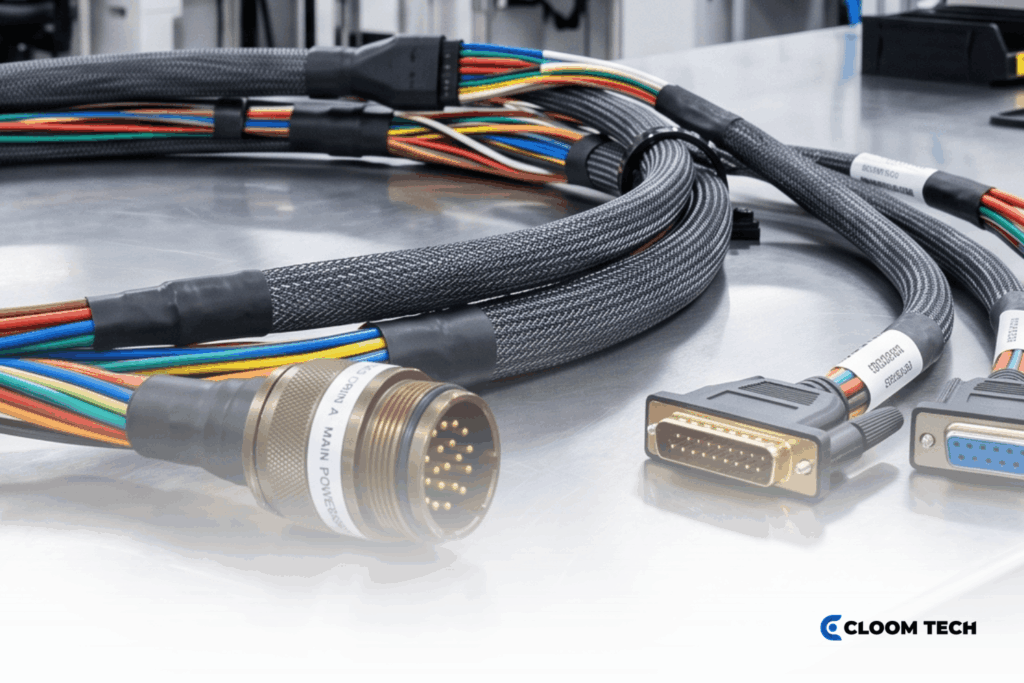

What is a Wire Loom?
A wire loom is a protective covering applied over bundled wires in a harness. It shields conductors from abrasion and heat and, depending on material and closure type, also reduces UV degradation and moisture ingress. The outer covering determines how well a harness survives its operating environment.
Loom selection belongs on the drawing, not left as an open variable for sourcing. The type you specify determines the protection level built into the finished harness.

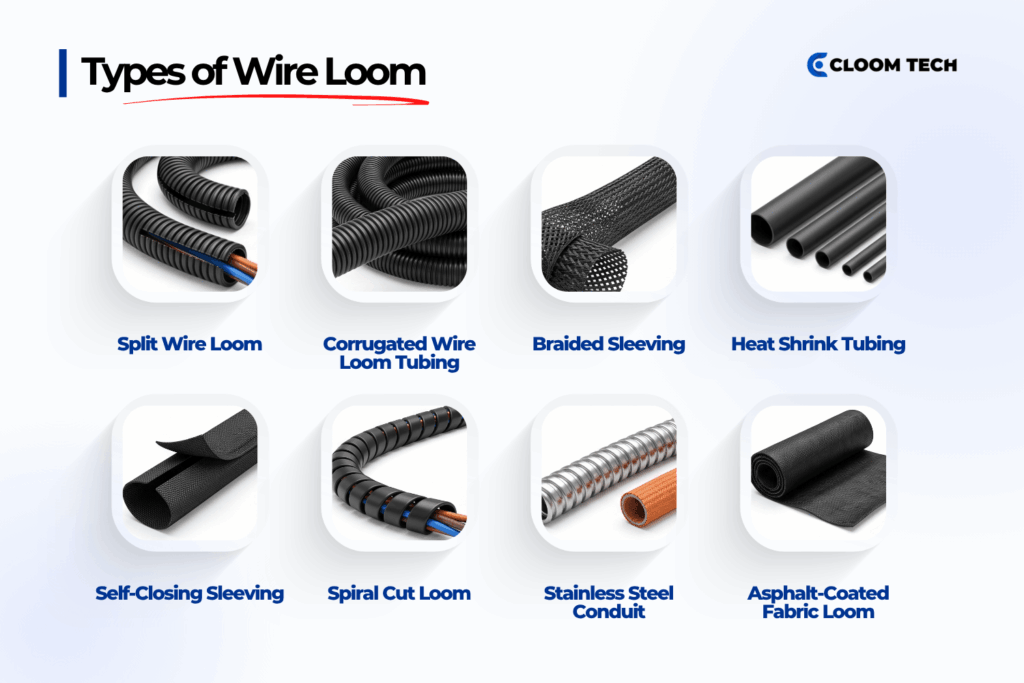

Types of Wire Loom
Each loom type suits a different combination of environment and installation method. Protection priority varies with the application, and the right choice depends on what your harness will face in the field.
Split Wire Loom
A single lengthwise slit runs the full length of split wire loom, and wires press in laterally without threading the full run. Standard materials include polyethylene (PE), polypropylene (PP), and polyamide (PA). PE is cost-effective, while PP handles higher temperatures. PA offers the best performance in high-temperature and high-flex applications.
As the most common harness protection type, split loom suits bundles that need post-installation access. Technicians can inspect or add wires without disturbing the rest of the harness.
Corrugated Wire Loom Tubing
A ribbed wall structure sets corrugated wire loom tubing apart from the basic slit design. The corrugations compress and flex under vibration without cracking, making them well-suited to automotive underbody runs and industrial equipment under constant movement.
Wire loom tubing of the corrugated type comes in split and non-split variants. Non-split corrugated tubing provides better abrasion resistance, since the closed wall leaves no entry point for debris, though it requires threading during installation.
Braided Sleeving
Woven from polyester or nylon filaments, this sleeving forms an expandable mesh around the wire bundle. The weave expands to accept a bundle, then contracts to grip it. Abrasion load spreads across the fabric rather than concentrating at a single point.
Metal-filament variants provide electromagnetic interference (EMI) shielding for noise-sensitive circuits near high-current conductors. Buyers in electronics and industrial automation favor braided sleeving for tight bends or high-flex zones, where it delivers better abrasion performance than split loom.
Heat Shrink Tubing
Made from polyolefin, this tubing contracts when heated to form a tight seal over an individual wire or connection point. Unlike bundle-level looms, it targets individual wire insulation and connector strain relief at termination points.
Specifying it on a drawing signals that termination points need environmental sealing. Heat shrink tubing is not a bundle-level substitute for full-run sleeving.
Self-Closing Sleeving
Typically made from woven polyester, this sleeving type needs no clips or fasteners. It wraps around a wire bundle, and its overlapping edges create a secure closure without any tools. Installation is faster than any threaded loom option and requires no tooling.
Buyers choose self-closing sleeving when installation speed matters or threading is impractical. It suits light abrasion but isn’t appropriate for sharp edges or sustained heat exposure.
Spiral Cut Loom
A continuous helical slit runs the length of this loom type. You can pull wires in or out at any point along the run. Individual wires branch off mid-run without cutting the sleeve, making it well-suited for retrofitting existing harnesses or routes where you expect future modifications.
Stainless Steel Conduit and High-Temperature Options
Where polymer sleeving degrades under temperature or mechanical load, metal conduit keeps the bundle protected. The interlocking construction resists crushing and deflects radiant heat, making it appropriate for harness runs near exhaust systems and industrial heating elements.
For temperatures above the polymer range, fiberglass sleeving tolerates up to 649°C, while aluminized and silicone-jacketed sleeving handle radiant heat deflection. Metal braided sleeving in tinned copper or stainless steel handles high-vibration and grounding applications. Stainless conduit is the heaviest option, so specifying it should reflect a genuine environmental need.
Asphalt-Coated Fabric Loom
A non-split construction makes this loom type suitable for harnesses exposed to moisture and abrasive chemicals. The asphalt coating resists water ingress and industrial fluids, including fuel and oil. A flame retardant layer adds protection where ignition risk exists.
Installation requires threading, but the sealed wall provides coverage that an open-format loom can’t deliver in wet or chemically aggressive environments. Underhood automotive runs and marine harnesses are the primary applications for this loom type.
| Loom Type | Material | Split? | Best For | Typical Application |
|---|---|---|---|---|
| Split wire loom | PE or PP | Yes | Easy access, general bundling | Industrial control panels, general harnesses |
| Corrugated wire loom tubing | PE, PP, or PA | Split or closed | Abrasion resistance, vibration | Automotive underbody, industrial equipment |
| Braided sleeving | Polyester, nylon, or metal | No (expandable) | High-flex, abrasion, EMI shielding | Robotics, electronics, noise-sensitive circuits |
| Heat shrink tubing | Polyolefin | No | Connector sealing, splice protection | Termination points, strain relief |
| Self-closing sleeving | Polyester | No (self-wrapping) | Fast installation, light protection | Routing in accessible locations |
| Spiral cut loom | PE or PP | Helical slit | Branch access, retrofit routing | Harnesses with mid-run wire exits |
| Stainless steel conduit | Steel | No | Extreme heat, heavy vibration | Near exhaust systems, industrial machinery |
| Asphalt-coated fabric loom | Fabric with asphalt coating | No | Chemical and moisture resistance | Underhood, marine, industrial fluid environments |

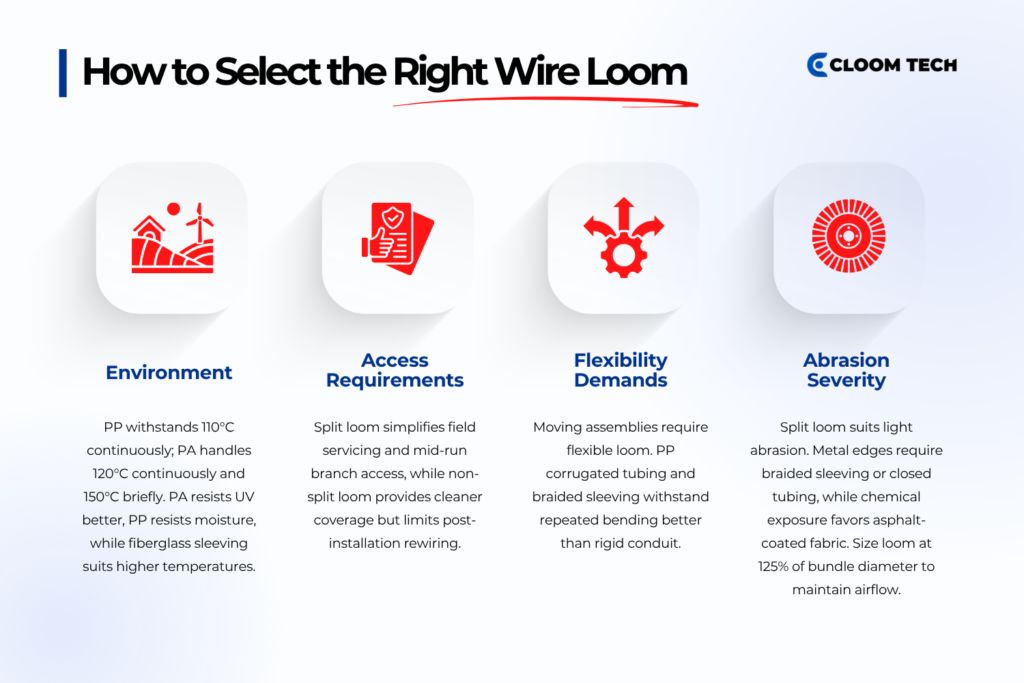

How to Select the Right Wire Loom
Working through four selection factors before specifying a loom type on your drawing prevents costly substitutions later.
Environment
PP handles continuous temperatures up to roughly 110°C, while PA (nylon) reaches about 120°C continuously with short-term spikes to 150°C. PA offers stronger UV and weather resistance for outdoor runs, while PP’s lower moisture absorption suits solvent-heavy or fuel-exposed environments. Above those limits, fiberglass or aluminized sleeving replaces both polymer grades.
Access Requirements
A split format is preferable when the harness needs field servicing. Spiral cut looms offer mid-run branch access without full sleeve removal; non-split options provide the cleanest coverage but limit post-installation rewiring.
Flexibility Demands
Looms specified for moving assemblies need to flex repeatedly without fatiguing. PP corrugated tubing and braided sleeving both accommodate repetitive bending better than rigid conduit.
Abrasion Severity
Split loom handles light-to-moderate contact adequately. Metal edges call for braided sleeving or closed corrugated tubing, while chemical abrasion combined with fluid exposure calls for asphalt-coated fabric loom.
A practical sizing rule: set the loom inner diameter at 125% of your wire bundle’s outer diameter. Maintaining a 30% air gap inside the loom sustains heat dissipation and prevents the bundle from over-packing.
Wire Loom in Custom Harness Manufacturing
Engineers specify loom type on the harness drawing, alongside wire gauge and routing dimensions. Our wire harness manufacturing team reviews every drawing to check loom compatibility with the harness geometry and operating conditions, flagging conflicts before production begins.
If your application requires a specific material grade, note it explicitly on your drawing. A vague reference to “split loom” without a material call-out leaves room for substitution during sourcing.
Confirming Loom Spec Before Production
Confirm the specification during the DFM review stage when loom compatibility affects performance. Design for Manufacturability (DFM) review addresses the drawing’s constructability and material fit, not product development from scratch. Conflicts caught at that stage avoid delays in lead time and pricing.
At Cloom Tech, our clients, including Honda and Honeywell, specify loom type at the drawing stage, which streamlines production and eliminates substitution queries. Our ISO 9001 and IATF 16949 certifications cover loom application and inspection on every harness. Your specification is what we build to. If you’re building a harness that needs specific loom protection, contact our team for guidance and support.
Wire Loom FAQs
What is a split wire loom used for?
Split wire loom bundles and protects wire harnesses across industrial and automotive applications. The lengthwise split lets you insert wires laterally and access them after installation without removing the full sleeve. It’s the most common loom type for harnesses that need periodic inspection or field servicing.
What is the difference between corrugated wire loom and braided sleeving?
Corrugated wire loom tubing uses a rigid, ribbed wall to resist crushing and vibration. Braided sleeving uses a woven mesh that expands and contracts around the bundle, spreading abrasion load across the fabric. Corrugated tubing performs better under mechanical impact; braided sleeving suits high-flex routing paths.
What wire loom is used in automotive applications?
Corrugated wire loom tubing in PP or PA material is the most common choice for automotive harnesses. It handles vibration and temperature variation across underbody and engine-bay routing. Programs specify split corrugated tubing when maintenance access matters; closed tubing suits locations where debris ingress is a concern.
Can I change the wire loom type on a custom harness?
Loom type is a drawing-level specification, so you can update it before production begins. Changes made after quoting affect lead time and pricing. Confirming the correct type during DFM review prevents those delays.
