A wire harness or cable assembly that fails RoHS testing can block market entry, delay a product launch, or trigger a costly recall. For any product entering the European Union, the United Kingdom, or other regulated markets, RoHS compliance isn’t optional. It’s a condition of sale.
The challenge is that compliance risk doesn’t sit in one place. It runs through solder, platings, insulation, jacketing, connector housings, and more. Knowing where those risks appear, how testing works, and what documentation actually proves compliance gives you a sharper way to evaluate suppliers. It also protects your supply chain before problems surface.

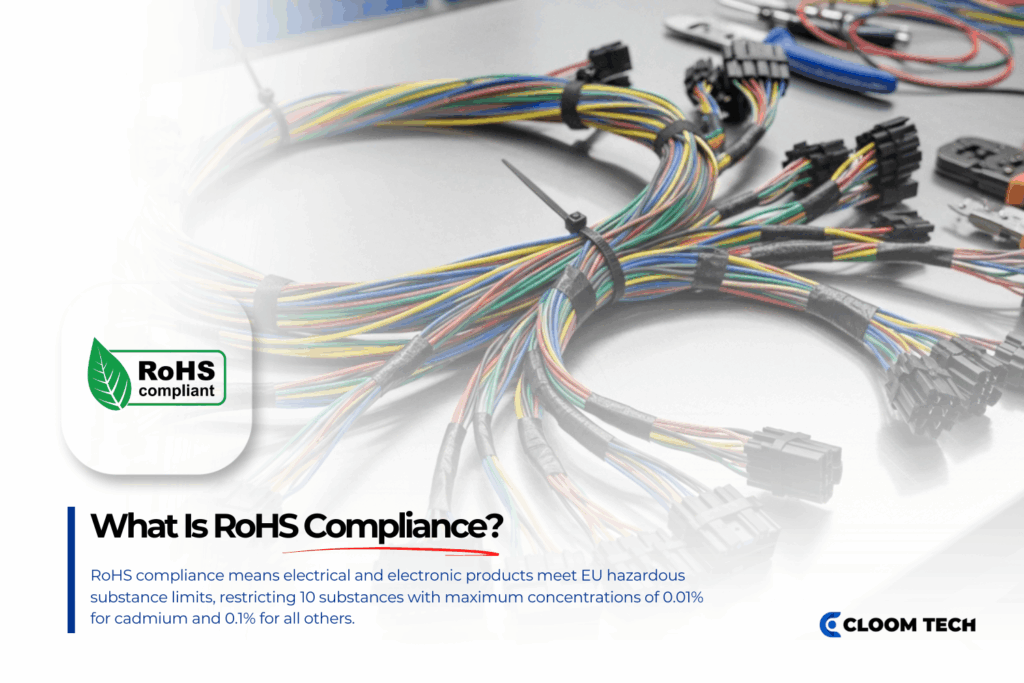

What is RoHS Compliance?
RoHS compliance means a product meets the hazardous substance restrictions set for electrical and electronic equipment under EU law.
The original RoHS directive, EU Directive 2002/95/EC, entered into force in 2003, with its restrictions applying from July 2006. RoHS 2 (2011/65/EU) expanded the scope and tightened documentation requirements. RoHS 3 (2015/863/EU) added four phthalates to the RoHS list of restricted substances, bringing the total to 10.
The current list covers lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), DEHP, BBP, DBP, and DIBP. Each substance carries a maximum concentration limit measured by weight in any homogeneous material.
The directive restricts cadmium to 0.01% and limits the remaining nine substances to 0.1%. Those limits apply per material layer, not across the entire finished assembly.
How RoHS Affects Wire Harness and Cable Assembly Materials
Material selection is where RoHS compliance becomes practical. Every material in a wire harness and cable assembly carries potential risk, and each must be reviewed against the restricted substance list.
Solder is the most visible risk. Lead-free SAC305 solder is the standard RoHS-compliant alternative to traditional tin-lead alloys. Connector and terminal platings require equal attention. Most programs prefer tin or gold platings. Leaded platings pose a direct compliance risk, and you should confirm their absence from any approved component.
Wire and cable insulation and jacketing introduce risk through the use of restricted flame retardants, particularly PBBs and PBDEs. Connector housings can contain restricted plasticizers, including the phthalates added under RoHS 3. Overmolding compounds and heat-shrink materials carry similar risks and often escape attention during material selection.
| Material/Component | RoHS Risk Area | Compliant Alternative |
|---|---|---|
| Solder | Lead content | Lead-free SAC305 solder |
| Connector and terminal platings | Leaded platings | Tin or gold platings |
| Wire insulation and jacketing | Restricted flame retardants | RoHS-compliant insulation and jacketing materials |
| Connector housings | Restricted plasticizers | RoHS-compliant plastics |
RoHS Compliance Testing
RoHS compliance testing typically starts with X-ray fluorescence (XRF) screening. XRF is fast and non-destructive, making it well-suited for incoming material inspection and plating verification. It effectively detects lead, cadmium, mercury, chromium, and bromine.
Where XRF flags a possible exceedance, accredited labs follow up with ICP-MS or ICP-OES. Inductively coupled plasma mass spectrometry and inductively coupled plasma optical emission spectrometry both confirm results at the material level.
Accredited third-party labs, including SGS, Bureau Veritas, Intertek, and TÜV, conduct this testing under recognized standards. When reviewing supplier quality and compliance documentation, request test reports for each component or material, not a single blanket declaration covering the entire assembly.
A blanket supplier declaration provides far less verification than material-level test data tied to specific part numbers and BOM revisions.
What a RoHS Compliance Certificate Actually Means
Buyers often request a RoHS compliance certificate without knowing what it actually proves. It’s a supplier’s self-declaration stating that a product meets RoHS compliance requirements. It is not an independent test certificate issued by an accredited lab. The distinction matters in practice.
A certificate alone tells you the supplier believes the product complies. Test reports on the actual materials and components tell you a lab verified the product. OEM buyers reviewing a harness for EU or UK market approval should request material test data alongside any certificate.
Documented compliance tied to specific materials, part numbers, and BOM revisions carries significantly more weight than a general declaration during final inspection or customer audit.
RoHS vs. REACH: What Wire Harness Buyers Need to Know
RoHS and REACH address overlapping concerns, but they operate differently. Treating them as interchangeable creates documentation gaps that surface during OEM approval or customer audit.
What each framework covers
RoHS compliance restricts 10 substances in finished electrical and electronic equipment, with concentration limits measured per homogeneous material.
Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) operates differently. It governs substances of very high concern (SVHCs) across articles, mixtures, and raw materials. Those obligations apply at every stage of the supply chain, not just in the finished product.
Where the obligations differ
The practical difference comes down to trigger points and timing:
- Assessment level: RoHS limits apply at the homogeneous material level in the finished assembly. A substance either exceeds the limit, or it doesn’t.
- Communication obligations: REACH Article 33 requires suppliers to proactively communicate the presence of SVHCs at or above 0.1% by weight to article recipients, not just when asked.
- Database reporting: Products placed on the EU market containing SVHCs require submission to the SCIP database under the Waste Framework Directive.
- Update frequency: The REACH SVHC Candidate List updates twice yearly, meaning a compliant material may require new disclosures after an update. RoHS restricts a fixed list of 10 substances.
- Expirations: RoHS exemptions carry defined expiry dates that must be tracked actively, whereas REACH obligations run continuously with no equivalent expiry mechanism.
Where RoHS and REACH Overlap for Wire Harnesses
The overlap occurs at the material level, specifically in flexible PVC jacketing and connector housings. The four phthalates added under RoHS 3 (DEHP, BBP, DBP, and DIBP) are plasticizers found in these materials.
All four appear on both the RoHS restricted substance list and the REACH SVHC candidate list. A single material choice can trigger obligations under both frameworks simultaneously. A connector housing containing DEHP above 0.1% by weight fails RoHS and cannot enter the EU market. The same housing may also trigger a REACH Article 33 disclosure obligation, regardless of whether it passes RoHS testing.
Hexavalent chromium presents the same dual-framework problem. RoHS restricts it in finished products, while REACH lists it as an SVHC that requires authorization for use in certain applications. A harness manufacturer using metal surface treatments or anti-corrosion coatings must check both lists for the same component.
Buyers sourcing for the European Union market should bring RoHS and REACH documentation requirements to the table at the RFQ stage before you lock material selections.
How Cloom Tech Handles RoHS Compliance
Cloom Tech manufactures RoHS-compliant wire harnesses and cable assemblies using lead-free materials and compliant components throughout the assembly process. Our wire harness manufacturing follows strict quality control at every stage, from material selection through final inspection, in line with ISO 9001, IATF 16949, and IPC/WHMA-A-620 quality standards.
Sourcing from a manufacturer with documented compliance built into its process simplifies market entry in the EU and UK. You don’t need to chase materials verification after production.
RoHS compliance is part of how we build. Contact our team for guidance or get a free quote here.
FAQs on RoHS Compliance for Wire Harnesses and Cable Assemblies
What substances does RoHS restrict?
RoHS restricts 10 substances in electrical and electronic equipment: lead, mercury, cadmium, hexavalent chromium, PBBs, PBDEs, DEHP, BBP, DBP, and DIBP. Each is subject to maximum concentration limits, measured by weight per homogeneous material.
How do I get a RoHS certificate for my wire harness?
Request RoHS compliance documentation, material declarations, and test reports directly from your manufacturer. A wire harness assembly process that maintains BOM-level traceability makes this straightforward. Certificates should tie to specific part numbers and drawing revisions to carry real weight during OEM production approval.
Is RoHS compliance required in the US?
The United States doesn’t have a federal equivalent to the EU RoHS directive. State-level rules in California under the Electronic Waste Recycling Act differ significantly from EU and UK RoHS compliance requirements. If your product enters EU or UK markets, or if your OEM buyers require it contractually, RoHS compliance applies wherever manufacturing takes place.
What is the difference between RoHS compliance and RoHS certification?
RoHS compliance means the product meets the substance restrictions defined under the directive. A RoHS compliance certificate is documentation supporting that claim, typically a supplier’s self-declaration. Compliance is the standard. The certificate is one form of evidence. For stronger verification, pair any certificate with material-level test reports from an accredited lab.
