Pick the wrong enclosure rating and the environment will find the gap – dust working into a seal, water past a gasket, salt air eating at steel. Each one disrupts production and adds maintenance cost you didn’t budget for.
NEMA and IP ratings exist to prevent exactly that, matching an enclosure to the hazards of its site so equipment runs reliably and stays compliant. The catch is that the two systems measure protection differently, and assuming they’re interchangeable is a common, expensive mistake. This guide breaks down what each one covers, how they’re tested, and how to choose between them or specify a dual-rated enclosure when you need both.

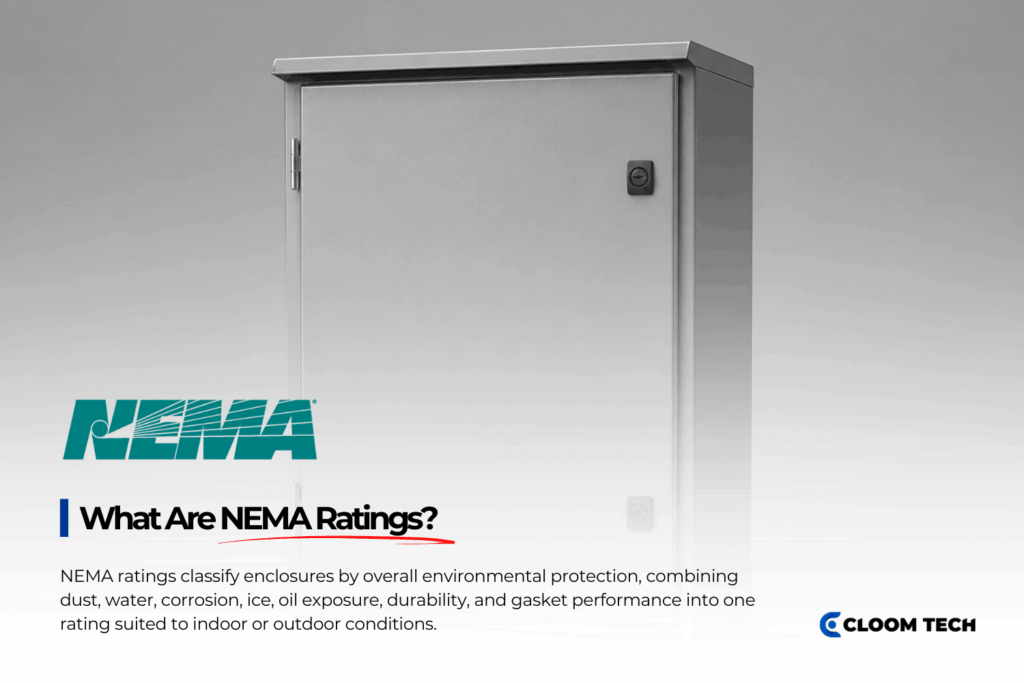

What are NEMA Ratings?
NEMA ratings come from the National Electrical Manufacturers Association, and they define how an enclosure stands up to environmental hazards as a complete package. A single rating bundles together protection from dust and water ingress, corrosion, ice formation, oil or coolant exposure, construction durability, and gasket performance.
That’s the defining trait: instead of measuring one variable, each NEMA rating rolls several protections into one classification. You pick the rating that fits your site’s hazards, indoor or outdoor, and you know the whole package comes with it.
Protections covered
NEMA ratings give engineers a framework for judging an enclosure under combined environmental stresses. In practice, that framework covers:
- Ingress protection against solid objects and water.
- Long-term resistance to corrosion, ice impact, and mechanical wear.
- Gasket and construction integrity under repeated operational stress.
- Protection for components against oils, coolants, and incidental chemical exposure.
Common NEMA enclosure types
The NEMA type system sorts enclosures by intended application and operating environment, which makes it easy to compare options before you plan an installation.
| NEMA Type | Description | Protects Against |
|---|---|---|
| NEMA 1 | Indoor, general-purpose. | Falling dirt and incidental contact. |
| NEMA 2 | Indoor. | Falling dirt, dripping water, and light splashing. |
| NEMA 3 / 3S | Outdoor. | Rain, sleet, windblown dust, and ice. |
| NEMA 3R | Outdoor. | Rain, sleet, and ice. Does not include windblown dust protection. |
| NEMA 3X | Indoor or outdoor. | Falling dirt, windblown dust, rain, sleet, snow, ice, plus added corrosion resistance. |
| NEMA 3RX | Indoor or outdoor. | Falling dirt, rain, sleet, snow, external ice, plus added corrosion resistance. |
| NEMA 3SX | Indoor or outdoor. | Falling dirt, windblown dust, rain, sleet, snow, and corrosion. External mechanisms keep operating under ice. |
| NEMA 4 / 4X | Wash-down areas (4); coastal or marine (4X). | Windblown dust, rain, sleet, snow, water spray, wash-down, and corrosion (4X only). |
| NEMA 5 | Indoor or outdoor. | Falling dirt, settling dust and fibers, dripping water, and light splashing. |
| NEMA 6 / 6P | Submersion conditions. | Occasional temporary submersion (6) or prolonged submersion (6P); corrosion (6P only). |
| NEMA 7 | Indoor, hazardous locations. | Containment of internal explosion; gases and vapors. |
| NEMA 8 | Indoor or outdoor, hazardous locations. | Prevents combustion when using oil-immersed equipment. |
| NEMA 9 | Indoor, hazardous locations. | Prevents dust from igniting. |
| NEMA 10 | Hazardous mining locations. | Contains internal explosion without external hazard. |
| NEMA 12 / 12K | Indoor industrial. | Dust, lint, and dripping non-corrosive liquids. |
| NEMA 13 | Indoor industrial. | Dust, spraying water, oil, and non-corrosive coolants, protecting sensitive components. |
Testing rigor
NEMA testing puts enclosures through extreme conditions so the rating means something measurable rather than nominal:
- A 65 gpm hose test at 10–12 feet verifies water resistance.
- More than 1,200 hours of corrosion testing in moist air and salt spray (ASTM B117) confirms durability.
- Ice impact testing checks that mechanisms still operate under external ice without degrading the rating.
- Documented results confirm the enclosure holds a consistent level of protection for its intended use.

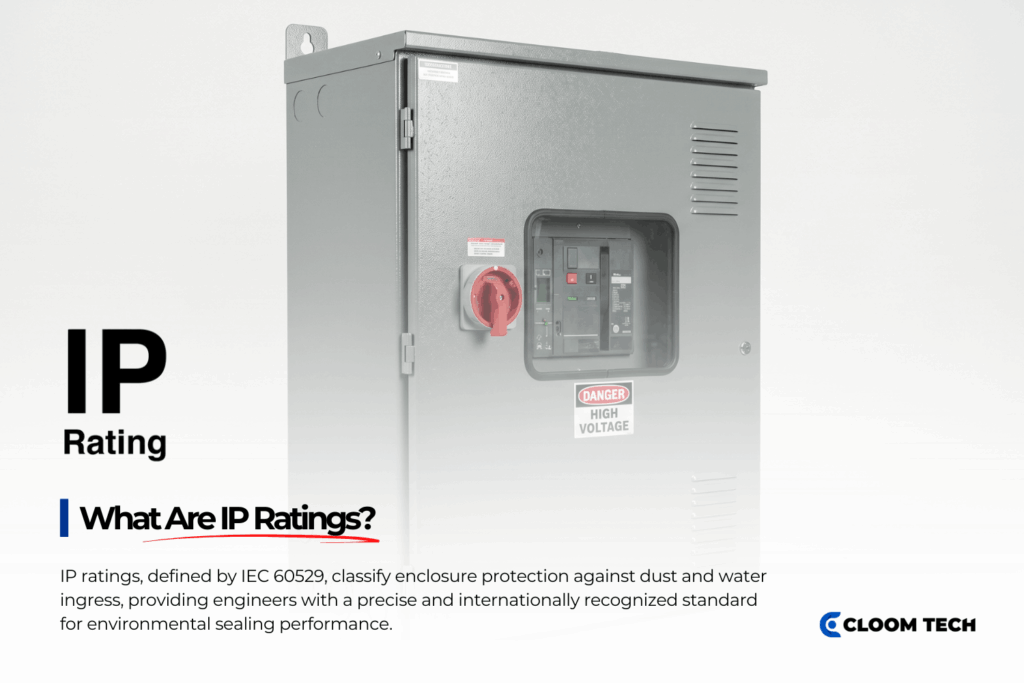

What are IP Ratings?
IP ratings come from IEC 60529, the international standard set by the International Electrotechnical Commission. The system classifies how well an enclosure keeps out solids and liquids, which makes it the common language for international applications.
Where NEMA bundles many protections, IP does one thing precisely: it rates dust and water ingress, and nothing else. That focus is its strength – engineers know exactly what an IP number guarantees – and also its limit.
How the two-digit IP code works
An IP code rates solids and liquids separately, so reading both digits is what gives you the full picture:
- First digit (0–6): protection against solid objects, from none up to dust-tight (IP6X), verified by vacuum or mechanical testing.
- Second digit (0–9K): liquid protection, spanning water drops, high-pressure jets (IPX6), temporary immersion (IPX7/IPX8), and high-pressure, high-temperature cleaning (IPX9K).
One trap worth knowing: water protection isn’t cumulative beyond IPX6. An enclosure rated for temporary (IPX7) or continuous immersion (IPX8) may still fail an IPX6 water-jet test unless it’s dual-rated, like IP66/IP67. So you have to check sealing, gaskets, and construction against every condition the enclosure will actually face.
Common IP ratings and applications
Matching an IP rating to its environment is straightforward once you know what each one handles. The numbers in parentheses below show the IP digit values as defined by IEC 60529.
| IP Rating | Solid Protection (1st Digit) | Liquid Protection (2nd Digit) | Typical Applications |
|---|---|---|---|
| IP65 | Dust-tight (6) | Low-pressure water jets (5) | Industrial control panels, food processing equipment |
| IP66 | Dust-tight (6) | Powerful water jets (6) | Wash-down areas, outdoor installations |
| IP67 | Dust-tight (6) | Temporary immersion to 1 m (7) | Marine sensors, outdoor electronics |
| IP68 | Dust-tight (6) | Continuous immersion (8) | Submerged or underwater equipment |
| IP69K | Dust-tight (6) | High-pressure, high-temp jets (9K) | Food processing, automotive, outdoor machinery |
Strengths and limitations
IP ratings give a precise, internationally recognized measure of ingress protection – but only ingress. It’s worth being clear on both sides:
- Precise, globally recognized protection against dust and water.
- No measure of corrosion resistance for coastal or chemically harsh areas.
- No ice-formation testing, so cold-weather performance stays unverified.
- No coverage of oil exposure or construction durability.
- Any hazard beyond dust and water needs separate consideration.
What are the Differences Between NEMA and IP?
Both systems rate the protection an enclosure provides, but they part ways on structure, scope, and how they test. This side-by-side shows where:
| Aspect | NEMA Ratings | IP Ratings |
|---|---|---|
| Rating structure | Pre-defined, comprehensive packages tailored to specific environments. | A two-digit code focused solely on ingress. |
| Additional protections | May include corrosion resistance, ice operability, oil/coolant resistance, and construction standards, depending on type. | None. |
| Water-jet testing | 65 gpm (~240 L/min) at lower pressure, 1-inch nozzle, 10–12 ft. | 100 L/min at 100 kPa, 12.5 mm nozzle. |
| Corrosion & durability | Corrosion-resistant types (e.g., NEMA 4X) may face 1,200+ hours of moist air with gases plus 800 hours of salt spray (ASTM B117). | No corrosion testing. |
| Ice formation | Tested for external ice impact and continued operability on applicable types. | Not tested. |
| Cumulative ratings | Not cumulative – a higher number doesn’t include lower-number protections (NEMA 12 doesn’t include NEMA 4). | Not guaranteed – IP67 doesn’t ensure IP66 performance. |
| Primary market | North America (code compliance, industrial). | International / global supply chains. |
| Cost & material impact | An “X” suffix adds 25–40% for corrosion-resistant materials. | No equivalent corrosion cost driver. |
Rating Performance: Materials, Installation, and Maintenance
A rating only holds up if the enclosure is built, installed, and maintained to support it. Three things decide whether it keeps its rating in the field:
- Material selection: Carbon steel, 304/316 stainless, aluminum, or durable polymers each set the limits for corrosion resistance, impact tolerance, and structural life. Stainless variants shrug off salt spray and chemicals, while polymers give lightweight corrosion protection for indoor or mild outdoor use.
- Installation: Correct orientation, gasket compression, fastener torque, and right-sized cable glands keep seals intact and leaks out. Misaligned components or under-tightened fasteners will quietly compromise both NEMA and IP performance.
- Maintenance: Regular inspections catch weakened gaskets, corrosion, and condensation early. Replace gaskets every 3–5 years on outdoor units, and check panels after high humidity, wash-downs, or big temperature swings.
How to Choose the Right Rating
Choosing the right rating works best as a short, deliberate process rather than a guess. Five steps cover it:
- Decide whether the equipment is mainly for North American or international use, and consider a dual-rated enclosure if you need global compliance.
- List every condition the enclosure will face – dust, water, submersion, corrosion, ice, oil or coolant, and temperature extremes.
- Identify the tests or design features each hazard demands, weighing wash-down exposure, chemical resistance, ice impact, and condensation.
- Pick a rating that covers all the identified hazards while balancing protection against cost, materials, and market.
- Don’t assume equivalence – confirm that a higher number or a different system actually delivers every protection you need.
Cloom Tech manufactures custom wire harnesses and cable assemblies built to your specified NEMA and IP requirements. We source genuine components from trusted suppliers – IP67-rated connectors, sealed glands, and environmental protection parts – to fit your customer-specified, NEMA and IP-rated enclosures, then handle integration, inspection, and assembly to your provided specifications.
Get in touch to talk through your next project and see how our wire harness solutions can support the long-term performance of your products.
NEMA vs. IP Ratings FAQs
Can I use an IP66-rated enclosure instead of a NEMA 4X enclosure?
In the wrong environment, that swap will cost you. Both block strong water jets, so spray protection matches up. The gap is corrosion: NEMA 4X requires rust-resistant materials and salt-spray testing, and IP66 skips that step entirely. In a coastal or chemical setting, an IP66-only enclosure fails fast.
Why does the “X” in NEMA 4X increase cost by 25–40%?
The X buys corrosion resistance, and that isn’t cheap. Manufacturers have to use stainless steel instead of mild steel or plastic, and each enclosure then passes salt-spray testing beyond 1,200 hours.
How often should enclosure gaskets be replaced?
In outdoor or harsh settings, gaskets wear out within three to five years. Inspect them once a year, since heat and chemicals harden the seal over time, and replace any gasket sooner at the first sign of cracking.
