A poorly sealed enclosure is an easy thing to overlook – until moisture creeps in and takes out a relay or a circuit breaker mid-production. Heat is just as quietly destructive, raising failure rates whenever sensitive controls run without proper environmental isolation.
The right enclosure does two jobs at once: it keeps people from accidental contact with live parts, and it shields the components inside from contamination. Get the match between enclosure and environment right, and you protect both your equipment and your uptime.
How Electrical Enclosures are Classified
Four factors drive how an enclosure is classified: its protection level, mounting method, material, and operating environment. NEMA (National Electrical Manufacturers Association) ratings cover the first of these, defining how well a housing resists moisture and airborne contamination.
Ingress Protection (IP) standards classify sealing performance against solids and water. Mounting style is more practical – it dictates how much space you need and how easily a technician can reach the equipment for maintenance.
Material is where the environment really shows its hand. Stainless steel outlasts painted carbon steel in corrosive settings, while function decides the rest: some enclosures house disconnect gear, others protect junction wiring or full automation assemblies.

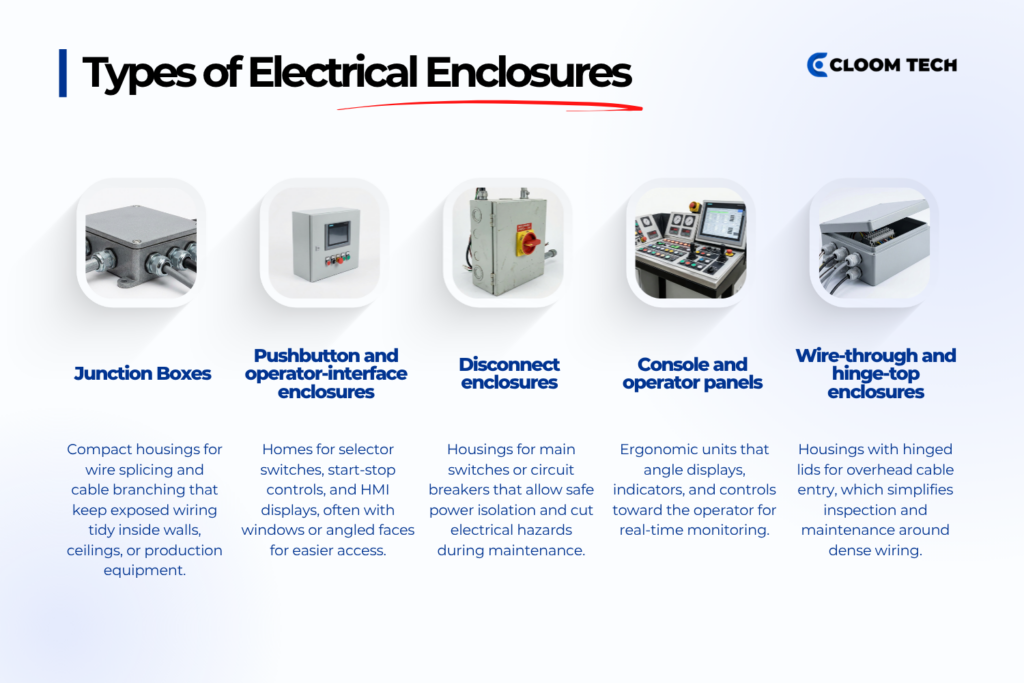

Types of Electrical Enclosures
Beyond shape and mounting, enclosures also break down by what they do – control, monitoring, isolation, or maintenance. Each one is built around how often the equipment needs access and what the surrounding conditions throw at it.
- Junction boxes: Compact housings for wire splicing and cable branching that keep exposed wiring tidy inside walls, ceilings, or production equipment.
- Pushbutton and operator-interface enclosures: Homes for selector switches, start-stop controls, and HMI displays, often with windows or angled faces for easier access.
- Disconnect enclosures: Housings for main switches or circuit breakers that allow safe power isolation and cut electrical hazards during maintenance.
- Console and operator panels: Ergonomic units that angle displays, indicators, and controls toward the operator for real-time monitoring.
- Wire-through and hinge-top enclosures: Housings with hinged lids for overhead cable entry, which simplifies inspection and maintenance around dense wiring.
Electrical Enclosure Materials
Material choice comes down to what the housing has to survive – moisture, chemicals, temperature swings, or all three. Each option offers a different balance of protection, weight, and cost.
- Mild and carbon steel: Strong and affordable for general indoor use, though they need coatings to resist surface corrosion and light splashing.
- Stainless steel 304 and 316L: Corrosion-resistant choices for equipment exposed to chlorides, chemicals, or marine conditions.
- Aluminum: Lightweight with natural corrosion resistance and good heat dissipation – well suited to portable, outdoor units.
- Fiberglass and FRP: Non-metallic housings with strong chemical resistance and dielectric strength for hazardous or conductive environments.
- Polycarbonate and ABS plastic: Lightweight options for light-duty indoor use, offering impact resistance and protection from debris or minor liquid exposure.
Special Structural and Design Features
A few structural add-ons make enclosures easier to inspect, service, and adapt. They matter most when operational requirements keep changing and you still need to hold a consistent level of protection.
- Windowed doors: Transparent panels that let you inspect contents without opening the enclosure or exposing hazardous parts.
- Dual-access designs: Front and rear access that simplifies wiring and servicing on large units in confined spaces.
- Flush-mount designs: Recessed housings that sit neatly against a wall for cleaner indoor integration.
- Modular designs: Expandable systems that add connected sections as equipment needs grow.
Protection Ratings by Electrical Cabinet Enclosures
Protection ratings put a standard number on how well a housing resists moisture, debris, and contact with energized parts. Two systems dominate – NEMA in North America and IP internationally.
NEMA Ratings
NEMA ratings, from the National Electrical Manufacturers Association, grade housings against moisture, debris, and hazardous conditions. Type 1 covers basic indoor use, guarding against accidental contact and limited falling dirt. Type 3R steps outdoors, resisting rain, sleet, and ice formation on the exterior.
Wash-down areas typically call for Type 4 systems, which stand up to hose-directed water. Type 4X adds corrosion resistance for chemical processing and marine settings, and Type 6P goes furthest of all, surviving prolonged submersion.
IP Ratings
IP ratings, defined under IEC 60529, measure protection against solids and liquids using a two-digit code. The first digit covers dust and solid objects; the second covers liquids. IP54 and IP55 handle dust accumulation and light splashing across both indoor and outdoor use.
Move up to IP65 and IP66 for resistance to dust and direct water jets on exposed controls. IP67 adds temporary immersion, and IP69K is built for high-pressure sanitation procedures.

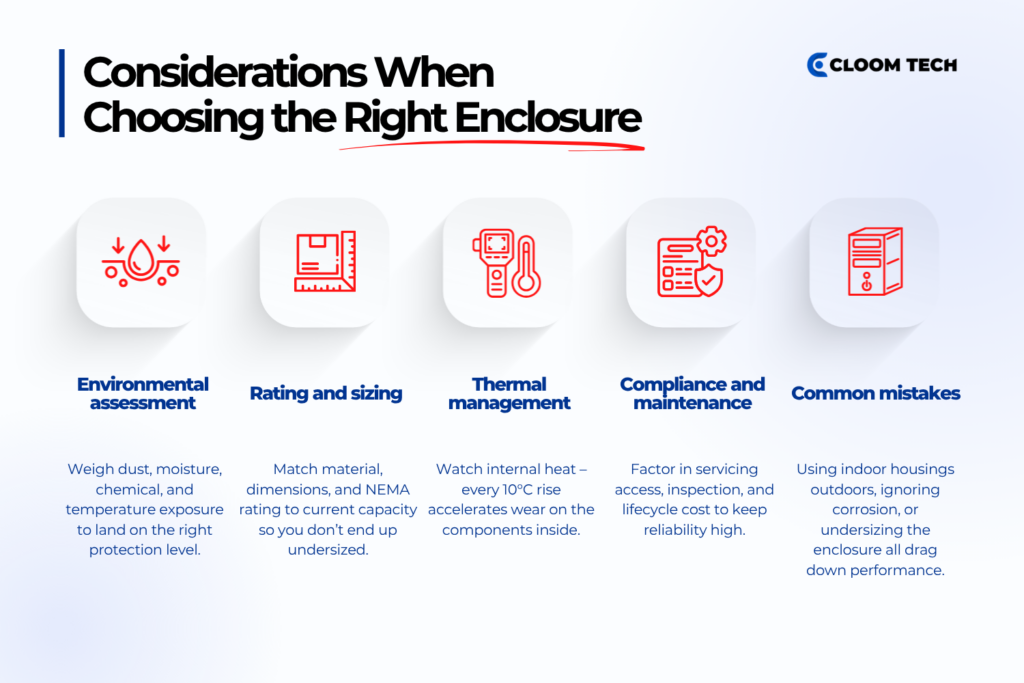

Considerations When Choosing the Right Enclosure
Picking the right enclosure means matching protection level, material, and installation needs to the conditions it’ll face. Sizing, cooling, and resistance to moisture or debris all feed directly into how long the system lasts.
- Environmental assessment: Weigh dust, moisture, chemical, and temperature exposure to land on the right protection level.
- Rating and sizing: Match material, dimensions, and NEMA rating to current capacity so you don’t end up undersized.
- Thermal management: Watch internal heat – every 10°C rise accelerates wear on the components inside.
- Compliance and maintenance: Factor in servicing access, inspection, and lifecycle cost to keep reliability high.
- Common mistakes: Using indoor housings outdoors, ignoring corrosion, or undersizing the enclosure all drag down performance.
Cloom Tech supports projects across every enclosure type with custom wire harnesses, sealed cable assemblies, and precision interconnects built to fit the enclosure’s NEMA or IP requirements.
Backed by ISO 9001, IATF 16949, and IPC/WHMA-A-620 certified processes, we handle proper strain relief, IP-rated connectors, and reliable integration inside wall-mounted, freestanding, sloped-top, or portable enclosures. Get in touch for fast quoting and a solution tailored to your next enclosure project.
Electrical Enclosure Types FAQs
What is the difference between NEMA and IP ratings?
IP ratings cover dust ingress and liquid exposure only. NEMA ratings go further, accounting for surface corrosion, ice formation, oil exposure, and hazardous environments. That extra environmental testing is what separates NEMA standards from IP classifications.
What material works best for coastal or saltwater environments?
Stainless steel 316L is the go-to for coastal settings thanks to its resistance to chlorides and aggressive corrosion, and its molybdenum content helps fight salt-related pitting. Fiberglass-reinforced housings are another solid option, since they won’t rust around exposed equipment.
What does an explosion-proof enclosure do?
An explosion-proof enclosure contains an internal ignition event so it can’t set off surrounding gases, vapors, or combustible dust. Reinforced walls and flame-tight joints cool any escaping gases before they reach external ignition. You’ll find these certified housings throughout oil and gas facilities and other classified industrial areas.
